12V / 24V • Circuit Test • Relay Test • Power Probe

Stop Guessing Which Wire, Fuse or Relay Failed.

Electrical problems can turn one broken light, horn or accessory into a long afternoon of tracing wires. This automotive diagnostic probe combines voltage testing, polarity identification, continuity checking, short-circuit diagnosis, relay testing and controlled positive / negative output in one handheld tool.

⚡ DC Voltage Test + / − Polarity Detection 🔊 Continuity Check 🔍 Short Circuit Diagnosis 🔁 4-Pin / 5-Pin Relay Test 🚗 12V / 24V Vehicle Systems
Automotive Electrical Faults Rarely Point to Themselves

A Dead Light Shouldn't Mean 30 Minutes of Swapping Between Four Different Test Tools.

The fuse looks fine. The relay clicks. The wire disappears into the harness. The connector has power — or maybe it doesn't. Electrical diagnosis gets slow when every new question sends you back to the toolbox for another tester.

🔌
Is Power Reaching the Circuit?

Check whether voltage is present at the point you're testing.

⏚
Is the Ground Actually Good?

Quickly distinguish positive power from negative / ground.

🔁
Is the Relay the Problem?

Test compatible 4-pin and 5-pin automotive relays without a separate relay tester.

One Probe. Multiple Diagnostic Questions.

Go From “Something Isn't Working” to a More Focused Circuit Diagnosis.

The DW833 combines several common automotive electrical checks into one powered diagnostic probe. Instead of stopping after a basic voltage reading, you can continue checking polarity, continuity, short circuits, compatible relays and selected components from the same handheld platform.

V
Voltage Test

View real-time DC circuit voltage on the digital display.

+
Polarity Test

Identify positive and negative / ground with dedicated indicators.

🔊
Continuity Test

Check whether an electrical path remains continuous.

⚡
Short Circuit Check

Support troubleshooting when a circuit may be shorted.

💧
Leakage Diagnosis

Adds another diagnostic mode for investigating abnormal electrical behavior.

↔️
Power Output

Apply positive or negative output to appropriate circuits or components when required.

Stop Squinting at Wires and Guessing the Polarity

Red Means Positive. Green Means Negative or Ground. No Light Means No Detected Voltage.

The dedicated indicator lights provide an immediate visual cue while the digital screen shows the circuit voltage. That makes routine checking faster when you're moving from fuse to connector to harness point.

+
Positive Detected

Red indicator illuminates when positive voltage is detected.

−
Negative / Ground

Green indicator identifies negative or ground.

○
No Voltage

No polarity indicator means no voltage is detected at that test point.

Know More Than “Power or No Power”

The Digital Display Shows the Voltage Instead of Giving You Only a Yes-or-No Test Light.

A basic test lamp can show that power exists, but it doesn't tell you the actual voltage value. The built-in digital display lets you see the detected DC voltage directly on the tester.

DC Circuit Measurement

Designed for low-voltage automotive DC electrical systems.

3.5–36V Listed Test Range

Circuit testing voltage shown in the supplied product specification.

LED Polarity Indicators

Visual positive and negative / ground identification.

One of the Fastest Ways to Start a Dead-Circuit Diagnosis

Check Both Sides of a Fuse Before Pulling Half the Fuse Box Apart.

Touch the probe to the accessible test points on a compatible automotive fuse. If power is present on both sides, current is reaching both fuse contacts. Power on only one side can indicate an open fuse or another circuit condition that needs further diagnosis.

1
Probe the First Side

Check one exposed fuse test contact for voltage.

2
Probe the Second Side

Compare the reading at the opposite test contact.

✓
Compare Results

Use both readings as part of the fuse and circuit diagnosis.

A Relay Can Click and Still Leave You Wondering

Test Compatible 4-Pin and 5-Pin Relays Without Building a Jumper-Wire Setup on the Bench.

The built-in relay section supports standard compatible 4-pin and 5-pin automotive relays. Select the corresponding mode, connect the relay in the correct position and use the tester to evaluate its switching behavior.

4
4-Pin Relay Mode

Dedicated selection for compatible standard 4-pin relays.

5
5-Pin Relay Mode

Switch modes for compatible standard 5-pin relays.

🔊
Switching Feedback

Audible relay operation and indicator feedback help with diagnosis.

Sometimes You Need to Know Whether the Circuit Failed — or the Component Did

Positive and Negative Output Lets You Test Appropriate Low-Voltage Components More Directly.

The output switch allows the probe to provide positive or negative output for suitable 12V / 24V low-voltage testing tasks. Used correctly, this can help determine whether a compatible component responds when supplied directly.

+
Positive Output

Supply positive power to an appropriate low-voltage test point when required.

−
Negative Output

Apply negative / ground where the test procedure specifically requires it.

🔍
Component Isolation

Helps separate a component problem from a wiring or supply problem.

Power Injection Is Useful — But Only on the Right Circuit

Confirm the Circuit Before Applying Positive or Negative Output.

The output function should only be used on circuits and components known to accept the selected vehicle voltage. Do not blindly inject power into control modules, sensors, communication lines or safety-related electronics.

⚠️
Identify the Circuit First

Know what the wire or terminal controls before applying output.

🧠
Avoid Sensitive Modules

Do not apply power directly to ECU, airbag, CAN or sensor circuits.

📘
Follow the Wiring Diagram

Use vehicle service information whenever circuit identity or expected voltage is uncertain.

Power at One End Doesn't Mean the Wire Is Good All the Way Through

Use Continuity Testing to Check Whether the Electrical Path Is Still Connected.

Broken wires, damaged connectors and poor connections can interrupt a circuit even when the harness looks fine from the outside. Continuity testing helps you determine whether the electrical path remains intact.

〰️
Harness Checks

Investigate continuity through compatible wires and harness sections.

🔌
Connector Checks

Check selected low-voltage connections during circuit diagnosis.

🔔
Audible Feedback

Sound feedback makes continuity checks easier without constantly watching the display.

Replacing the Same Fuse Twice Isn't a Repair

If a Fuse Keeps Blowing, the Next Question Is Where the Circuit Is Shorting.

Shorts can come from damaged insulation, pinched wires, incorrect repairs or failed components. The tester includes short-circuit diagnostic functions to help narrow down low-voltage automotive electrical faults.

⚡
Blown Fuse Problems

Use circuit testing to investigate repeated fuse failure instead of only replacing it.

🔍
Damaged Wiring

Help narrow diagnosis toward pinched, rubbed or compromised wiring.

🛠️
Repair Verification

Re-check the circuit after a repair before considering the job finished.

One Tester for More Than Passenger Cars

Works Across Common 12V and 24V Vehicle Electrical Systems.

The tester is designed for low-voltage automotive systems including common 12V passenger vehicles and compatible 24V commercial or work vehicles.

🚗
Cars

Diagnose common 12V vehicle electrical circuits.

🚐
Vans

Useful for low-voltage electrical troubleshooting and repair.

🚚
Trucks

Supports compatible 12V and 24V truck electrical systems.

🏗️
Work Machinery

Suitable for compatible low-voltage circuits on engineering machinery.

Electrical Faults Rarely Happen Right Next to the Battery

The Long Battery Lead Lets You Reach Around Larger Vehicles Without Constantly Moving the Power Connection.

Battery clamps provide the tester's power source, while the long cable gives you room to move around the engine bay, cabin and other accessible low-voltage test points.

17.7 ft Approx. Cable Length

Long reach for moving around larger vehicles and work areas.

2 Battery Clamps

Red and black battery clamps provide operating power.

1 Handheld Probe

Keep the main testing controls in your hand.

Wiring Problems Have a Habit of Hiding in the Darkest Part of the Vehicle

Built-In Illumination Helps You See the Connector Before You Touch the Probe to It.

Integrated light near the probe area adds visibility when working around fuse boxes, wiring harnesses and darker areas of the vehicle.

💡
Probe Illumination

Adds light near the testing area while you work.

🌙
Dark Engine Bays

Useful around shadowed connectors and harness routing.

🔎
More Precise Contact

Better visibility helps you place the probe on the intended point.

Start With the Symptom. Work Back Through the Circuit.

Useful for the Electrical Problems That Turn Simple Repairs Into Guesswork.

💡
Lighting Faults

Check power, ground and circuit continuity around compatible lighting systems.

📢
Horn Circuits

Help isolate fuse, relay, wiring or component-side problems.

🔋
Fuse Panels

Quickly compare voltage across compatible fuse test points.

🔁
Relay Circuits

Test compatible 4-pin and 5-pin automotive relays.

From Battery Connection to First Test Point

Connect the Clamps, Identify the Circuit and Start Testing.

1
Connect to Battery

Attach the red and black clamps to the correct battery terminals.

2
Identify the Circuit

Confirm the expected circuit voltage, polarity and component.

3
Touch the Test Point

Place the probe carefully on the intended electrical contact.

4
Read the Result

Use the voltage display, indicator lights and test mode to continue diagnosis.

Less Tool Switching. Faster Diagnostic Flow.

Keep More of the Electrical Troubleshooting Process in One Handheld Tool.

Traditional Multi-Tool Workflow
  • Multimeter for voltage measurement
  • Test light for quick power checks
  • Separate continuity testing setup
  • Jumper wires for selected component checks
  • Separate relay testing procedure
  • More time changing tools and connections
DW833 Diagnostic Probe
  • Digital DC voltage display
  • Positive / negative indicator lights
  • Continuity testing
  • Short-circuit diagnostic functions
  • Positive / negative output
  • Built-in compatible 4-pin / 5-pin relay testing
Built for Anyone Who Diagnoses More Than They Guess

Useful in the Repair Shop, Garage, Fleet or DIY Toolbox.

🔧
Mechanics

Keep common low-voltage circuit checks close at hand.

🏪
Repair Shops

Useful for routine automotive electrical troubleshooting.

🚚
Fleet Maintenance

Support diagnosis across compatible 12V and 24V vehicles.

🏠
DIY Car Owners

A practical tool for experienced owners troubleshooting low-voltage circuits.

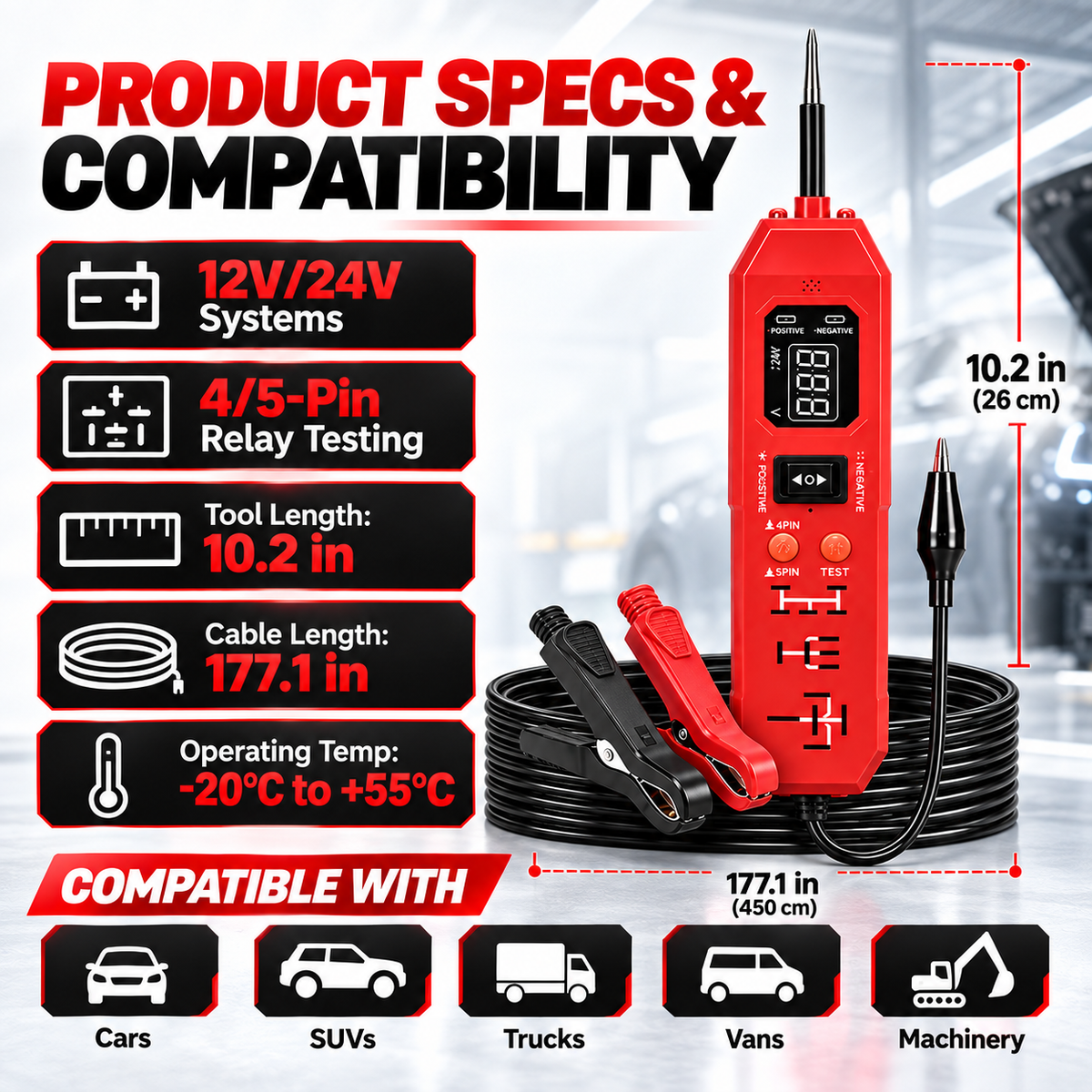

Handheld Body With Long-Reach Leads

Compact Enough for the Toolbox, Long Enough to Reach Around the Vehicle.

10.2 in Approx. Tester Length

Overall length shown in the supplied product dimensions.

2.7 in Approx. Probe Section

Extended metal probe section for test-point access.

17.7 ft Approx. Main Cable

Long cable reach around larger vehicle work areas.

1.9 in Auxiliary Probe

Approximate accessory probe length shown in the image.

Frequently Asked Questions

What to Know Before You Start Probing Vehicle Circuits.

What vehicles does it work with?

It is designed for compatible 12V and 24V low-voltage vehicle electrical systems, including cars, vans, trucks, buses and some engineering machinery.

What voltage range can it test?

The supplied specification lists a circuit testing range of DC 3.5V–36V.

Can it identify positive and ground?

Yes. The product uses a red positive indicator and green negative / ground indicator, while the display shows detected voltage.

Can it test continuity?

Yes. Continuity testing is one of the listed diagnostic functions.

Can it test relays?

Yes. It includes support for compatible standard 4-pin and 5-pin automotive relays.

Can it test fuses?

Yes. The probe can be used on accessible automotive fuse test points to compare power on both sides as part of fuse diagnosis.

Can the probe supply power?

The tester includes positive and negative output functions for appropriate low-voltage diagnostic tasks. Always identify the circuit and verify that direct power is safe before using this function.

Can I use it on hybrid or EV high-voltage systems?

No. This tester is intended for low-voltage automotive DC circuits only. Do not use it on hybrid or electric-vehicle high-voltage traction systems.

Can I apply power directly to sensors or control modules?

Do not do so unless the vehicle's service information specifically confirms that the circuit can accept direct power. Improper power injection can damage sensitive electronics.

What operating temperature is listed?

The supplied product specification lists an operating environment of approximately -20°C to +55°C.

Product Details

Automotive Circuit & Relay Diagnostic Tester

Model DW833
Product Type Automotive Electrical Circuit & Relay Tester
Vehicle Systems Compatible 12V / 24V Low-Voltage Vehicle Electrical Systems
Circuit Test Range DC 3.5V–36V
Voltage Display Digital Real-Time Voltage Display
Polarity Indicators Red = Positive • Green = Negative / Ground
Main Functions Voltage, Polarity, Continuity, Short-Circuit & Leakage Diagnosis
Output Function Positive / Negative Output for Appropriate Low-Voltage Testing
Relay Support Compatible Standard 4-Pin & 5-Pin Automotive Relays
Power Connection Vehicle Battery Clamps
Approx. Cable Length 17.7 ft
Additional Feature Built-In Probe Illumination
Operating Temperature Approx. -20°C to +55°C
Best For Automotive Circuit Diagnosis, Fuse Checks, Relay Testing, Wiring Troubleshooting & Low-Voltage Electrical Repair
Designed for low-voltage automotive DC diagnostics only. Do not use on household AC mains, hybrid / EV high-voltage traction systems, ignition secondary high voltage or any circuit beyond the tester's rated range. Before using the positive / negative output function, identify the circuit and confirm that direct power application is permitted. Never inject power blindly into ECUs, sensors, airbag / SRS circuits, communication lines or other sensitive electronic modules. Follow the vehicle manufacturer's service information whenever circuit function is uncertain.
Probe • Read • Trace • Test

Spend Less Time Guessing What Failed — and More Time Testing the Circuit That Actually Matters.

Connect to the battery. Check the fuse. identify power and ground. Read the voltage. test continuity. verify the relay. Then continue through the circuit instead of replacing parts until the problem disappears.

View full details
